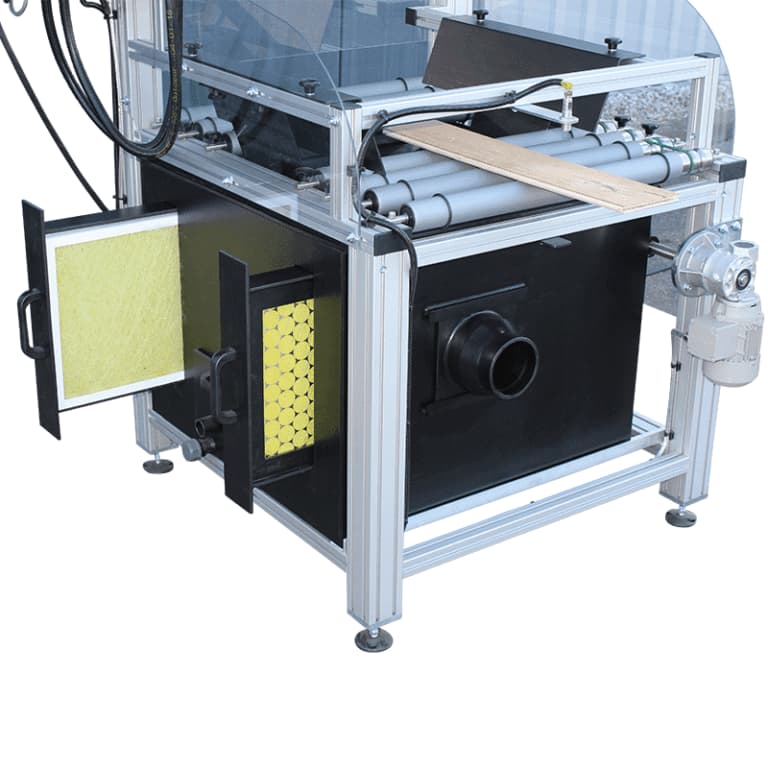

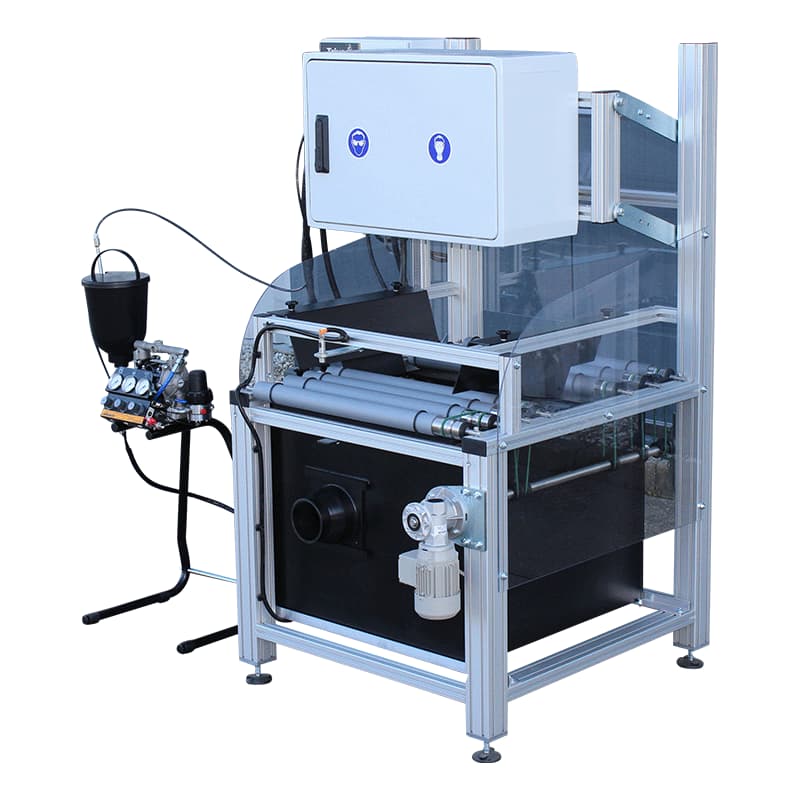

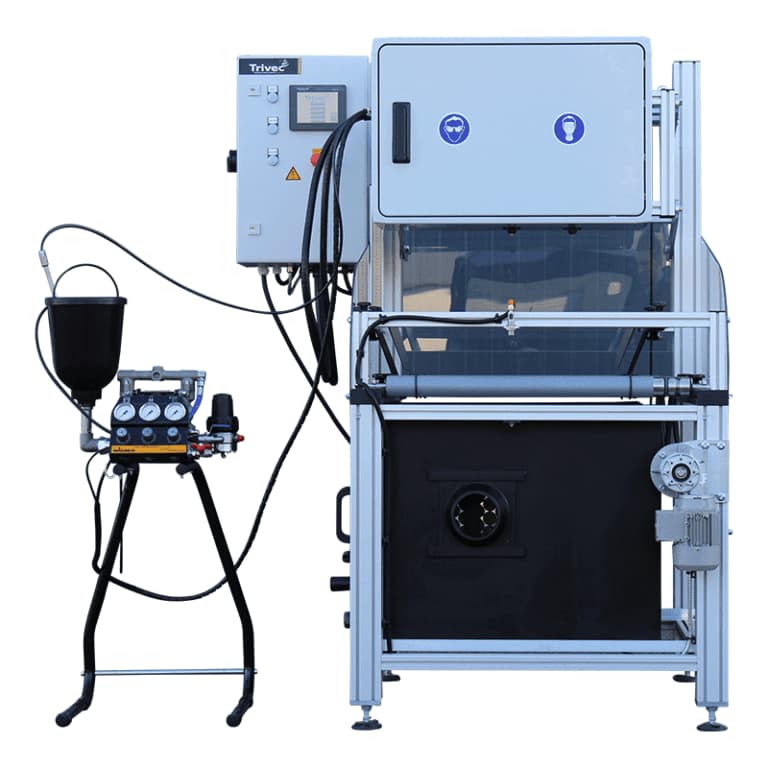

Reactive Stain Sprayer
The Reactive Dye System is an advanced system designed for the precise application of dye to wood using pneumatic nozzles. This system offers flexibility to work with or without a substrate. The conveyor belt with adjustable speed enables precise control of the application process.
The system is equipped with adjustable precision nozzles for optimal dye coverage to prevent scrapping and reduce product waste. Pneumatic nozzles ensure uniform application and high productivity. Can operate with or without a conveyor belt depending on requirements.

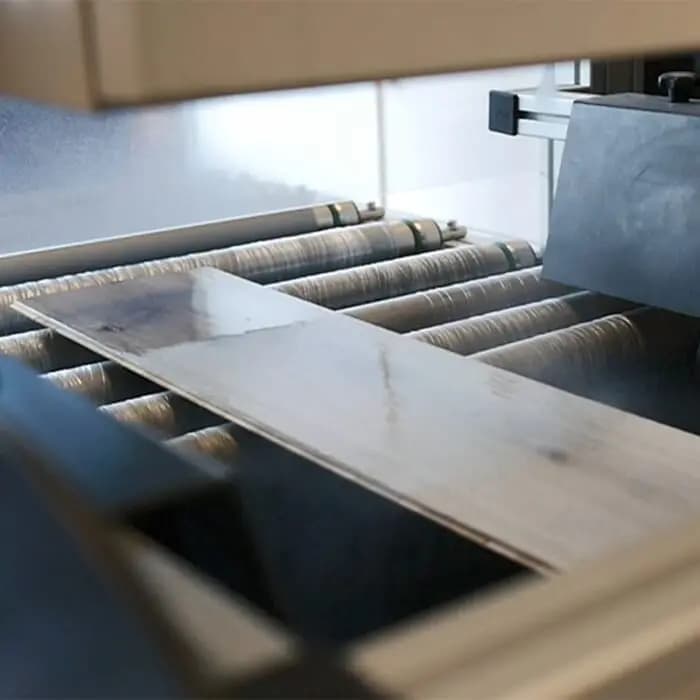

Substrate is a conveyor belt with adjustable speed. This advanced technology enables high precision and process repeatability.
Technical specifications
| Specification | Value |
|---|---|
| Working width | 400 – 650 mm |
| Maximum working capacity | Max 100 pieces per hour |
| Spray nozzles | 2 |
| Spray nozzles can be set both manually | with or without a substrate (the conveyor) |
| Operate the workpiece either | with or without a substrate (the conveyor) |
